Description

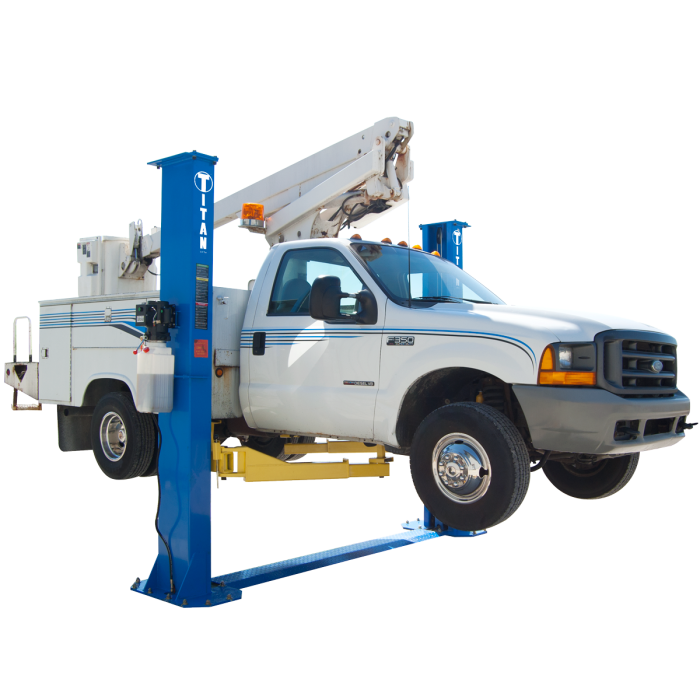

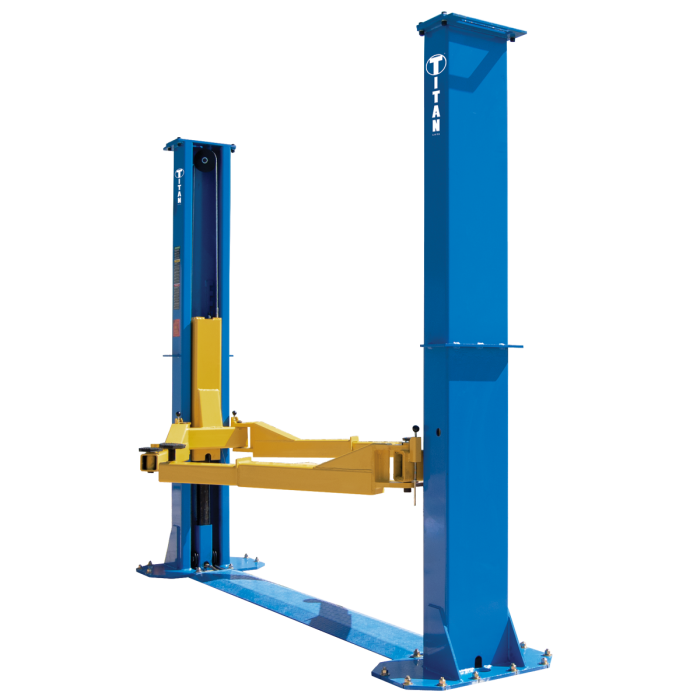

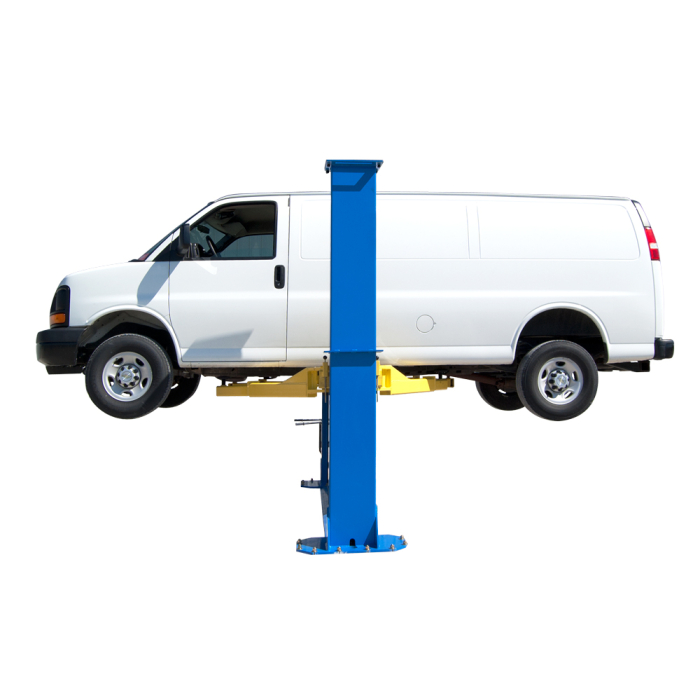

The Titan 12,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you’d expect from a quality lift.
They come in a durable scratch resistant Cobalt Blue powder-coated finish. The Titan 12,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 6 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.
FEATURES
- Free mounting hardware
- Low profile arm restraints
- Durable powder coat finish
- “Big Foot” base plates for extra stability
- Dual 3″ cylinders with low friction chain rollers
- 1 Year Electric/Hydraulic Warranty
- 5 Year Structural Warranty
SPECS
- Overall Height: 122″
- Overall Width: 148″
- Width Between Posts: 120.25″
- Drive-Thru: 107.5″
- Min Pad Height: 5″
- Max Pad Height: 76.5″
- Lifting Speed: 60 sec
- Lifting Capacity: 12,000 lb
- Concrete Spec Min: 6″ @ 3,000 PSI
- Power Unit: 220V-1PH-60HZ-20AMP
